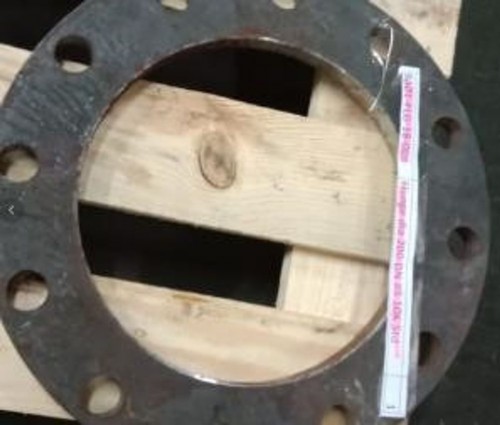

Flange diameter 200 DN JIS 10K Std
Dilihat: 624 kali
Size : 200 mm
: 8 Inches
Flange
Diameter (H) : 330 mm
Inner Diameter (A) : 218 mm
Thickness (T) : 22 mm
Bolt to Bolt length (K) : 290 mm
Drilling
Bolt No : 12
H : 23
Weight : 7.51 Kg
Spesifikasi
| Product Code | 9A01-FLG-18-009 |
| Product Name | Flange Diameter 200 DN JIS 10K Std |
| Brand | Standard |
| Weight | 7.51 Kg (7510 Gram) |
| Depth | 330 mm (33.00 cm) |
| Width | 330 mm (33.00 cm) |
| Height | 22 mm (2.20 cm) |
| Categories | Year End Clearance Sale 2021,Fire Fighting System, |
| Warranty | 1 year |
