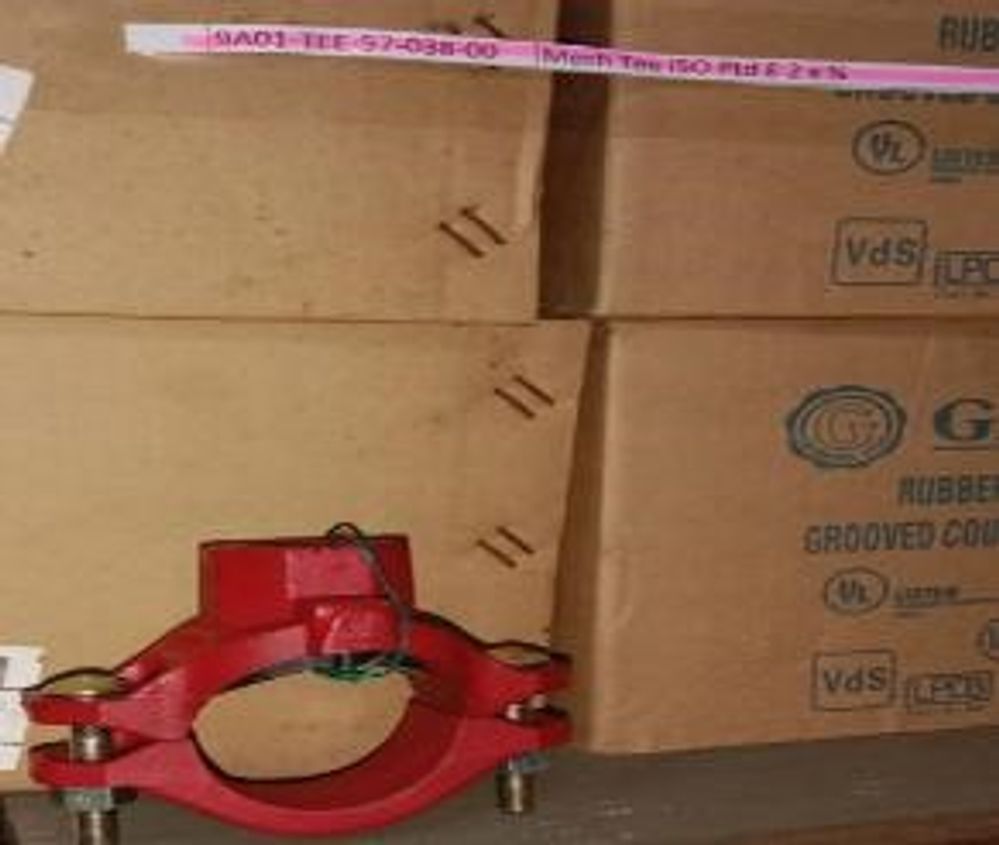

The GRINNELL Mechanical Tees provide an additional threaded or grooved outlet in existing piping. For new construction, Mechanical Tees provide a way to bypass the use of a reducing tee. The Mechanical Tee can easily be converted to a cross.
Approvals
UL, FM, ULC, VdS,
LPCB (Cert. Nos. 669a and 673a)
Branch Outlet
Threaded (Female NPT or ISO 7-1)
Grooved
Max. Working Pressure
500 psi (34,5 Bar)
Note: Maximum pressure applies to
the Mechanical Tee. When connected
to a grooved coupling, the rating will
be the lesser of the Mechanical Tee or
Coupling rating. Maximum pressure is
a total from all loads, based on standard weight steel pipe. For further information on piping specifications contact GRINNELL Mechanical Services.
Housing
Ductile iron conforming to ASTM
A 536, Grade 65-45-12
Protective Coatings
• Non-lead orange paint
• RAL red (optional) non-lead paint
• Hot-dipped galvanized conforming to
ASTM A 153
Bolts/Nuts
• Track Head Bolts – conforming to
ASTM A 183, Zinc Plated, (Min. Tensile = 110,000 psi / 758,422 kPa)
Metric – conforming to ASTM F
568M
Gasket
• Grade “E” EPDM, Green color code
-30°F to 230°F (-34°C to 110°C)
• Grade “T” Nitrile, Orange color code
-20°F to 180°F (-29°C to 82°C)
